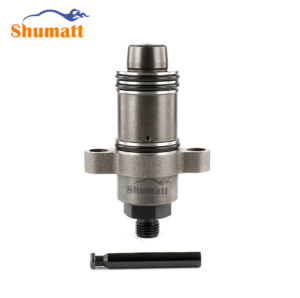

1. F019D04036 Diesel Pump Plunger Packing List

	1	2	3
Name	Diesel Pump Plunger	Bubble Bag	White Anti-rust Bag
Description	Diesel pump plunger part number: F01M100927	Prevent the diesel pump plunger from being damaged by external forces	Prevent diesel pump plunger from rusting
No.	4	5	6
Image			/
Name	Desiccant	Diesel Pump Plunger Packing Box	/
Description	Prevent diesel pump plunger from rusting; absorb moisture	Place the diesel pump plunger and diesel pump plunger accessories	/

2. F019D04036 Diesel Pump Plunger Technical Support

2.1. F019D04036 Diesel Pump Plunger Not Working Normally

• There is air in the oil circuit of the engine fuel system.
• Vehicle oil pump’s oil supply system is not normal.
• Engine common rail system oil leakage or pressure limiting valve damage.
• There is a short circuit, cutting out and poor contact in the wiring harness connected to the diesel pump plungerof the vehicle.
• The long-term placement of the diesel pump plungercauses the anti-rust oil to solidify, and the internal components are stuck or the oil holes are blocked.
• Before installing, carefully check whether other components in the common rail system except the diesel pump plungerare damaged to prevent the diesel pump plungerfrom not working properly after being replaced.

2.2. F019D04036 Diesel Pump Plunger Storage Standard

• Choose a Suitable Storage Place

The warehouse and cargo yard where the diesel pump plunger is stored should be kept clean and dry, and away from the factory buildings that generate harmful gases and dust; do not mix with acids, alkali, salt, and other substances; the storage place should have a good drainage system; the cargo yard should be flattened with gravel or furnace ash etc. to enhance the water permeability of the surface layer to keep the reservoir area dry.

• Strict Requirementsof Warehousing

Strict inspections should be carried out when the diesel pump plungers are put into storage, the surface cleaning work should be done well to remove water traces, oil stains, ashes, and other dirt, remove the rust and do anti-rust treatment in time. Packaged diesel pump plungers must be protected from damage.

• Keep The Warehouse Dry And Preventing Moisture

The relative humidity is usually below 70% for the diesel pump plungers placed in the room, and the corrosion of the diesel pump plungers is significantly reduced.

Diesel pump plungers must be stored in the warehouse, and they are forbidden to store in the same warehouse with commodities with high water content.

• StackProperly

After the diesel pump plunger is exposed to rain, the corrosion rate will increase significantly. The purpose of sealing is to isolate the diesel pump plunger from rainwater and humid air, so the warehouse window should be checked in time to avoid rainwater entering the warehouse.

If the diesel pump plunger package is damaged, it should be repaired or replaced; when the package is damp, the packaging material should be dried; if the original anti-corrosion and oil applied at the factory is found to be damaged or dried up, it should be cleaned and re-applied oil in time.

• It is forbidden to leave the diesel pump plungerexposed in the air for a long time.
• It is forbidden to store acids, alkalis, salts, and other substances together with the diesel pump plunger.
• The unpacked diesel pump plungermust be rust-proof during secondary storage.
